Wright Stander Small Frame

The Wright Stander provides uncompromised control, speed and traction with the power you need for the smallest to the largest jobs.

Its manoeuvrability makes it an ideal choice for mowing awkward locations like cemeteries and its compact size means it’s easy to load on small trailers and vans. With the Stander’s Operator Balance Control (OBC), you can mow hills as fast as level ground.

With its exclusive Wright quad-control system, there’s no better way to combine accuracy, speed and zero-turn performance. By positioning the operator between the drive wheels and above the deck the Stander offers exceptional cutting accuracy.

Wright Stander Small Frame: Features

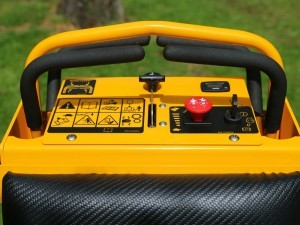

Quad Lever controls
Comfortable and easily accessible to the user

16hp Kawasaki V-Twin Engine
Designed to reduce emissions whilst maintaining productivity and performance

Deck construction
7 gauge heavy duty and commercially fabricated

Deck options

  • rear
  • mulch

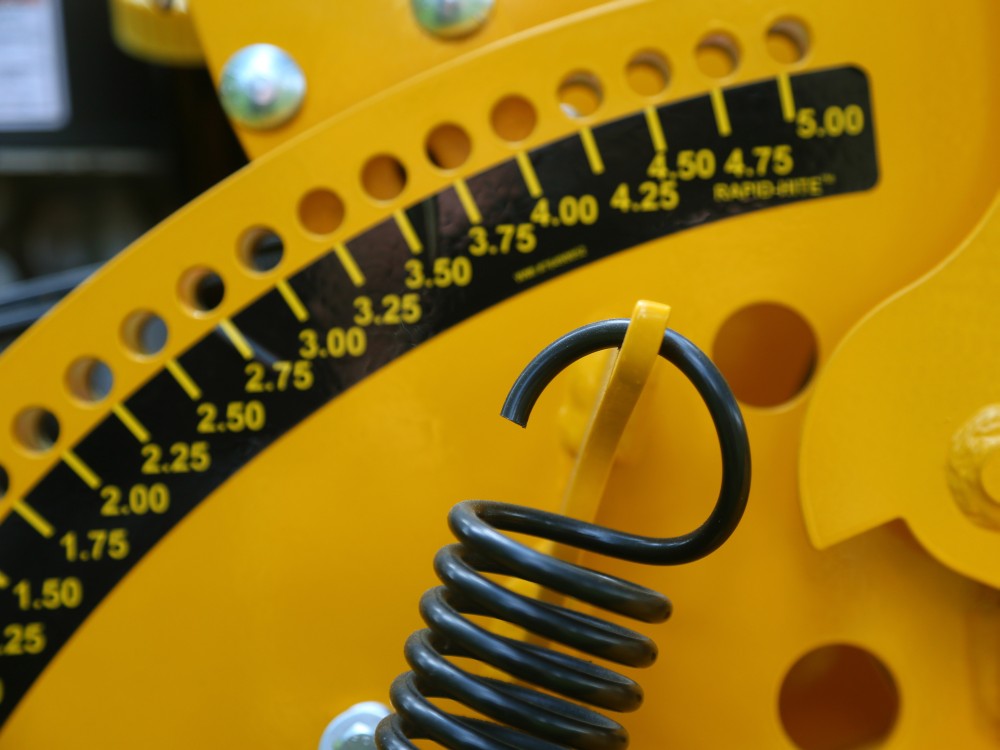

Deck height adjustment
Variable height from 1”/ 5″ (2.5cm – 12.5cm)

Spindles

  • Cast iron housing 1” shaft
  • Precision ball bearing

Wright Stander Small Frame: Specifications

 Cutting
Suspension type n/a
Cutting Height range (inches) 1.75 to 4.5
Cutting Height range (cm) 4.5 to 11.5
Deck size (Inches) 32
Deck size (cm) (32”) 81.5
Deck construction 7-gauge, heavy duty commercial fabricated
Deck lift n/a
Deck discharge Rear
Cutting Blades 2
Mulching kit n/a
Spindles Cast iron
Greasable spindles
 Engine & Performance
Engine power 16hp
Engine make Kawasaki V-Twin
Engine model Recoil/Elec
Engine cylinders n/a
Emissions compliance n/a
Fuel type Petrol
Fuel Capacity litres 19 litres
Fuel Capacity gallons 4
Starting Electric
PTO Electric
 Drive & Transmission
Transmission Hydro Pumps
Axle size (Inches)
Axle size (cm)
Drive Tyres size 20 x 8-10 4ply
Drive Tyres pattern Turf pattern (rear)
Operator Controls Zero turn stick steer
Castor tyres size 11×4.0-7
Castor tyres type Flat-free with roller bearings
Forward Speed (mph) 7.5
Forward Speed (kph) 12
Reverse Speed (mph) 4.3
Reverse Speed (kph) 6.9
Brakes Parking brake
 Physical
Length 147cm
Width 85cm
Dry Weight 275kg
 Warranties
Main Warranty (Months) 24 months manufacturer’s warranty
Engine warranty (Months) 24 months manufacturer’s warranty
Suspension warranty  (Months) 48 months manufacturer’s warranty
Other warranties (months) 24 months commercial use, front-to-rear, parts & labor excluding belts, tyres, brake pads, battery and blades
Safety
Hand-Arm Vibration (HAV) (ms2) < 2.5
Whole Body Vibration (WBV) (ms2) < 0.5
Sound (dBA) 100
ROP (Roll-Over Protection) Standard, foldable with seat belt
 Other safety features
Special features
Operator controls Quad-lever

Wright Stander Small Frame: Accessories

  • Service kit
  • Grip pattern tyres
  • Solid front castor tyres
  • Mulching kit – 32”
